Optimised for scalability, space and energy efficiency

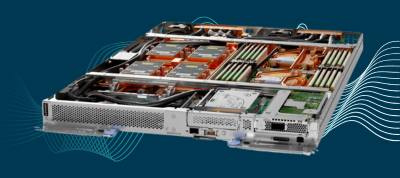

A blade server is a stripped-down computer that houses the CPU, memory, network connectivity, hard drives/SSD/NVMe, graphics, storage I/O and management.

The blade server is designed to be energy and space efficient and allows a business to scale its compute requirements as it grows, simply by adding another server blade into the blade chassis.

A blade is essentially a modular sliver of server that can be populated with the necessary compute and added to the chassis to scale as and when required.

There are blade servers that are diskless, storage resides on the SAN.  This allows for a higher blade server density for compute using the CPU or GPU.

Due to the compartmented, nature of a blade chassis they tend to have a far higher supported life span than traditional rackmount servers.

Blade Server Design

A blade server simply inserts into the blade chassis.  The blade chassis interconnects with all the blade servers and houses the cooling, power, networking, storage I/O and management via a backplane(s).  In simple terms it is an empty shell to which you insert servers.

Advantages of a Blade Server

Below are some of the advantages of using a blade server chassis over individual rackmount servers:

Reduced network complexity – Typically, X10 rackmount servers = X10 management connections. Whereas a blade server can house X10 servers and have a single management port for them all.

Reduced power consumption – Each rackmount server would normally have X2 PSU so having X10 servers = X20 power leads.  As a blade chassis houses all the power it requires X4 power leads to run the whole chassis.  In addition to the power cables there are energy savings as the power supplies are optimised to run more efficiently.

Reduced network traffic – Having multiple servers housed in a blade chassis means the communication between the blade servers is contained within the chassis rather than broadcasting across the whole network.

Enhanced security – The blade chassis is a completely self-contained data centre with all the components housed in a modular chassis that can be rack mounted or floor standing.  Due to the design it is very easy to secure a blade server from outside attacks as much of the compute and processing is done within the blade chassis.

Reduced cooling – A blade chassis is optimised and designed to cool multiple blade servers.  This greatly reduces the number of fans required as many of the components on a blade server are airflow optimised i.e. processors are mounted at the back of the blade server nearer to the fans.

Reduced expenditure – If a business is growing rapidly and the compute requirement over a 2-3-year period can be measured then a blade server makes perfect financial sense.  The biggest expenditure is the blade chassis to house the blade servers, so the upfront cost will be more than purchasing individual rackmount servers, however once you start to scale beyond four or six servers that upfront cost is recouped as well as all the savings mentioned above.

Physical space savings – As a blade chassis is highly dense and compact a 10U blade chassis can house up to 14 blade servers.  Where 14 rack mount servers could easily take up 14U or 28U depending on the server size.

Fault tolerant – A blade chassis is designed to be fault tolerant by design to support failures of key components such as blade servers, switches, back planes, power supplies, fans, data storage and I/O.  If a blade server fails, just slide it out and replace it.

Greater support life – A blade chassis can be supported by the manufacturer for 10+ years whereas a normal server is supported for 5 years.

Applications use cases

As a blade chassis houses multiple blade servers it is ideal for all the following applications.

  • Virtualisation – Powerful enough to run a virtual infrastructure to provide VM’s for applications or be used for VDI to deliver a virtual desktop environment
  •  Clustering – Ideal for use with software applications such as Microsoft Cluster Server or VMware vSphere Cluster these applications require multiple servers to create high performance clusters
  •   A blade server can run the same applications as a normal server

Limitations of using a blade chassis

A blade chassis as mentioned does have many benefits over rackmount servers but there are some limitations as shown below:

  • The first one is pricing; the business needs to ensure that for the blades chassis to provide a decent ROI that it will fill most of the empty blade slots and the application(s) can take advantage of this type of configuration
  •  A blade server cannot be upgraded to support faster network speeds unless the backplane can handle it
  •  Blade servers suffer with limited data storage space as most blade servers only support 1 or 2 drives
  •  If a software application requires a very high network or storage requirement then a rackmount server would be a better choice
  •  The network switch port density is less than a data centre switch
