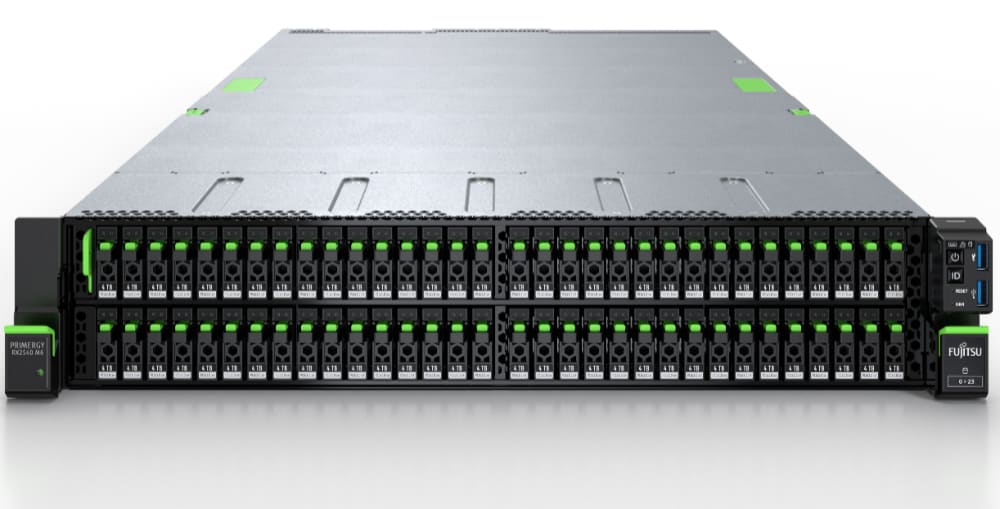

Fujitsu PRIMERGY RX2540 M6

PRIMERGY RX2540 M6 Powered by Intel® Xeon® Scalable Processors

The Fujitsu PRIMERGY RX2540 M6 is a 2U ultra high capacity x86 dual socket server that supports the latest 3rd Generation Intel® Xeon® Scalable Processors with up to 40 cores per CPU, with performance improvements up to 40% better than the previous generation processors.

Fujitsu PRIMERGY RX2540 M6

Fujitsu PRIMERGY RX2540 M6 supports EDSFF

Break free from the limitations of legacy data center SSD form factors with the revolutionary E1.L and E1.S Intel® SSDs based on Enterprise and Data Center SSD Form Factor (EDSFF). Designed from the ground up, EDSFF-based SSDs deliver the building blocks for scalable solutions. Increased operational efficiency and massive space consolidation reducing the storage physical footprint, results in lower TCO.

Featuring a common connector and pinout, the array of flexible, future-ready features enable a broad range of interoperable designs.

Designed to meet top data center storage challenges
Creation of EDSFF was guided by three principles: enable scale, optimize total cost of ownership, and enable a dynamic range of solutions.

These principles were driven by key data center storage challenges, as surveyed from top IT decision makers, including: ability to scale capacity to support data and application growth, driving down the cost of storage—lowering operating and capital expenditures, while increasing storage agility, and deliver required application performance without compromises. With a healthy and growing ecosystem, Intel supports EDSFF as the data centre form factor standard of the future.

Fujitsu PRIMERGY RX2540 M6 Key Features

  • 2-socket server supporting 3rd Gen. Intel® Xeon® Scalable Processors
  • 64x 4TB EDSFF (Enterprise & Data Centre Storage Form Factor) drives
  • 24x 2.5” SAS/SATA/NVMe drives
  • 12x 3.5” SAS/SATA drives
  • 8TB of memory or 12TB using Intel® Optane™ persistent memory
  • 8 PCIe Gen4 slots flexible DynamicLoM adapters via OCP V3
  • Equip the server with up to six NVIDIA GPU cards

Applications and use cases

Applications and use cases ideal for virtualization, software defined storage, AI, bioscience, geoscience, video production and rendering, HCI, Big Data and Data Intensive application use cases where large amounts of fast memory and fast storage are required would be the obvious areas of application for the Fujitsu PRIMERGY RX2540 M6.

Data Storage Support

The Fujitsu PRIMERGY RX2540 M6 supports 64x of the new EDSFF (Enterprise & Data Centre Storage Form Factor) NVMe drives, 12x 3.5-inch SAS/SATA, up to 24x 2.5-inch SAS/SATA/NVMe. With support for the new PCIe 4.0 I/O standard with 8x PCIe slots.

Memory Capacity

The Fujitsu PRIMERGY RX2540 M6 supports an extremely large amount of memory provided by 32 DIMM slots (up to 12 TB of memory). Beside the enhanced DDR4 modules, it is also possible to combine them with new Intel® Optane™ persistent memory 200 series that provide fast, high capacity and cost effective memory for intensive workloads such as data analytics and in-memory databases.

Optimised Performance and Density

Wide choice of different available types of 3rd Generation Intel® Xeon® Scalable processors. Each processor offers between 8 to 40 cores (depending on SKU), 16 memory channels, up to 3 Intel® Ultra Path Interconnect (UPI at 11.2 GT/s) and PCI Express 4 with up to 64 lanes (per socket) enabling a significantly higher performance and efficiency.

Networking and Connectivity

The Fujitsu PRIMERGY RX2540 M6 has numerous network configuration options via OCP adapters including, 2x 100 Gbit/s QSFP28, 4 x 1 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s Ethernet (RJ45), 4 x 10 Gbit/s Ethernet (RJ45), 2 x 10 Gbit/s SFP+, 4 x 10 Gbit/s SFP+, 2 x 25 Gbit/s QSFP28.

Agile Infrastructure Management

Infrastructure Manager (ISM) provides seamless, holistic management ensuring that IT infrastructures retain the dynamic flexibility required to support ever-changing business demands. Two versions of ISM are available. ISM Advanced is a powerful, fully featured version offering comprehensive infrastructure management capabilities such as support for multiple hardware configurations, physical and virtual network connection indicators, and firmware baseline updates. A free entry-level version, ISM Essential, provides essential monitoring and firmware update of all supported devices, including servers, storage and network switches.

Why choose Fujitsu?

Fujitsu is a class leading manufacturer of x86 systems for the data centre. The portfolio includes rack, tower, blade, dense and converged systems, and supports enterprise class performance, reliability and security. They also manufacturer a range of all flash or hybrid storage arrays, super computers and desktop/laptops.

Fujitsu PRIMERGY RX2540-M6 Specifications

What now?

As fully accredited and certified Fujitsu suppliers we can help provide evaluation systems, quotations and full technical support and services to ensure you’re pleased with your purchase and would recommend them again.

Fujitsu RX2540 M6 Datasheet
