Lenovo ThinkAgile VX systems are servers built and validated for VMware vSAN, delivered with VMware ESXi installed at the factory. They give you compute and storage in one cluster, managed from the VMware tools your team already knows.
Fortuna Data is an accredited Lenovo partner and supplies ThinkAgile VX to UK organisations, with help sizing and planning your cluster.

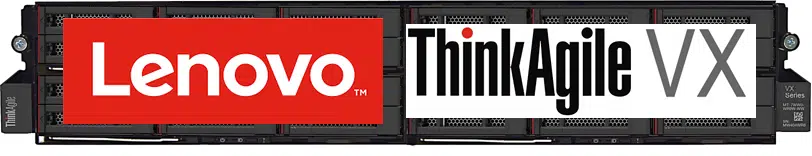

ThinkAgile VX is Lenovo's range of hyper-converged systems for VMware vSAN. Each system is based on a Lenovo ThinkSystem server, integrated and validated at the factory with firmware at supported levels.
Several VX systems form a vSAN cluster that runs your virtual machines and storage together, with no separate SAN to buy and manage.
New to HCI? Read: What is hyper-converged infrastructure?

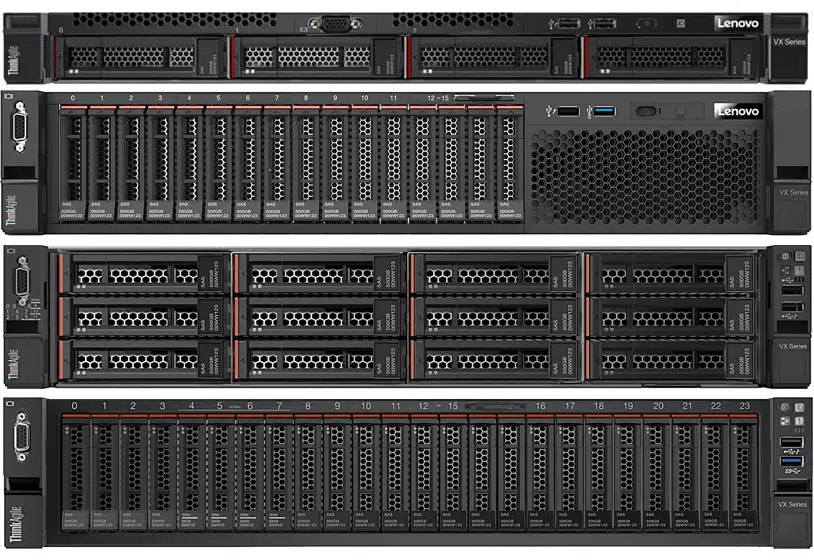

The current range is built on Lenovo ThinkSystem V4 (Intel Xeon 6) and V3 (AMD EPYC 9000) servers.
| Model | Size | Processors | Best for |
|---|---|---|---|
| VX630 V4 | 1U | Intel Xeon 6 | Dense compute where rack space is tight |
| VX650 V4 | 2U | Intel Xeon 6, 2 sockets; up to 8TB memory; up to 24 all-flash drive bays; GPU support | General virtualisation, databases, VDI |
| VX650a V4 | 2U | Intel Xeon 6, 2 sockets; up to 8 NVMe drive bays | Virtualisation, VDI, databases, AI inference |
| VX850 V4 | 2U | Intel Xeon 6, 2 or 4 sockets; up to 16TB memory; up to 24 all-flash drive bays | High-performance workloads such as databases |
| VX655 V3 / VX665 V3 | 2U | AMD EPYC 9000 | AMD-based clusters |
Not sure which model fits? Tell us your workloads and we will size the cluster for you.
Specifications from Lenovo Press product guides.
Tell us how many virtual machines you run and how much storage you need, and a specialist will recommend the right nodes.
We can help you work out the hardware and licences you need.
| HX | MX | VX | |
|---|---|---|---|
| Software platform | Nutanix | Microsoft Azure Local | VMware vSAN |
| Hypervisor | Nutanix AHV (or VMware ESXi) | Microsoft Hyper-V | VMware ESXi |
| Learn more | Lenovo ThinkAgile HX | Lenovo ThinkAgile MX | This page |
Reviewing VMware after the Broadcom licensing changes? See Nutanix solutions and Lenovo ThinkAgile MX for Microsoft Azure Local.
ThinkAgile VX is Lenovo's range of hyper-converged systems for VMware vSAN, delivered with VMware ESXi installed at the factory.
No. VMware Cloud Foundation (VCF) or VMware vSphere Foundation (VVF) licences are bought separately from a Broadcom seller.
With VVF, a cluster can have 3 to 64 hosts, and 2-node clusters with a witness are supported for branch offices. VCF needs at least 4 nodes for its management domain.
They use different software. HX runs Nutanix, MX runs Microsoft Azure Local, and VX runs VMware vSAN.
Lenovo ThinkAgile HX runs Nutanix and ThinkAgile MX runs Microsoft Azure Local. See Nutanix solutions or Lenovo ThinkAgile MX.
It depends on the model, number of nodes and configuration. Contact us with your requirements and we will provide a quote.
Speak to a specialist about your vSAN project. We will size the cluster and give you a clear UK quote.
Prefer email? Write to solutions@data-storage.uk
