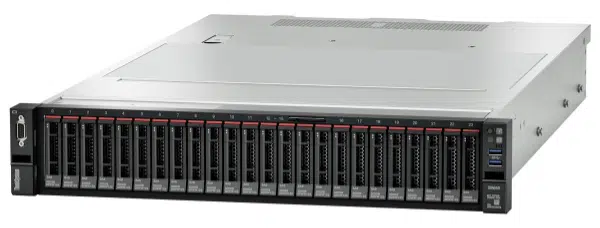

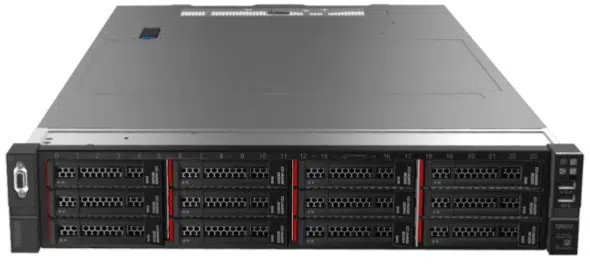

The Lenovo ThinkSystem SR655 is a single-socket 2U rackmount server that supports the AMD EPYC 7002 “Rome” family of processors. Designed to tackle big data center workloads such as analytics virtualization, VDI, OLTP, software defined storage.
The Lenovo ThinkSystem SR655 supports up to 64 cores and 128 threads per processor with core speeds of up to 3.7GHz, and a TDP ratings up to 280W. With support for the new PCIe 4.0 I/O standard with 8x PCIe slots, providing a world leading core count for a 2U server!
With a wide choice of storage storage configurations the Lenovo ThinkSystem SR655 servers provides support for high capacity HDDs to lightning-quick NVMe drives to maximize both data capacity and throughput performance.
The Lenovo ThinkSystem SR655 provides the expandability, networking scalability, and speed necessary to ensure that I/O intensive workloads such as software defined networking, and grid computing do not encounter bottlenecks that reduce full enterprise efficiency.
The ThinkSystem SR665 features Lenovo’s lauded XClarity system management suite. The XClarity management controller supports an easy-to-use application with industry standard Redfish-compliant REST APIs that provide streamlined hardware provisioning and maintenance, enabling a data-driven, centralized view of data center operations.
Trust Lenovo ThinkShield to protect and defend your data center infrastructure from attacks, with a comprehensive end to-end approach to security that begins with development and continues through supply chain and the full life cycle of the device. AMD EPYC processors also offer unique security features, embedded with secure boot and full memory encryption capabilities to address growing security-threats.
Lenovo is the leading provider of x86 systems for the data center. The portfolio includes rack, tower, blade, dense and converged systems, and supports enterprise class performance, reliability and security.

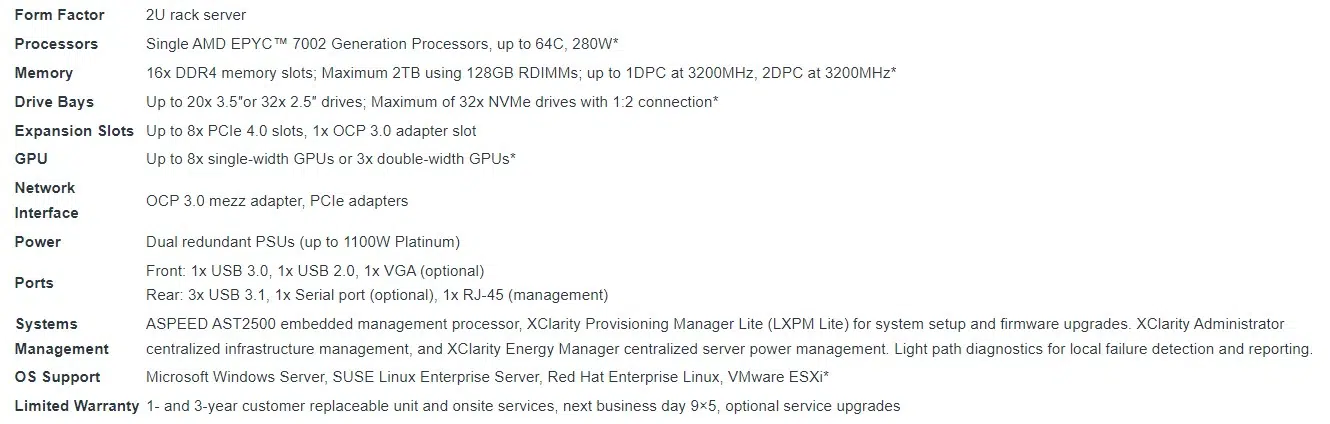

|Form Factor||2U rack server|
|Processors||Single AMD EPYC™ 7002 Generation Processors, up to 64C, 280W*|
|Memory||16x DDR4 memory slots; Maximum 2TB using 128GB RDIMMs; up to 1DPC at 3200MHz, 2DPC at 3200MHz*|

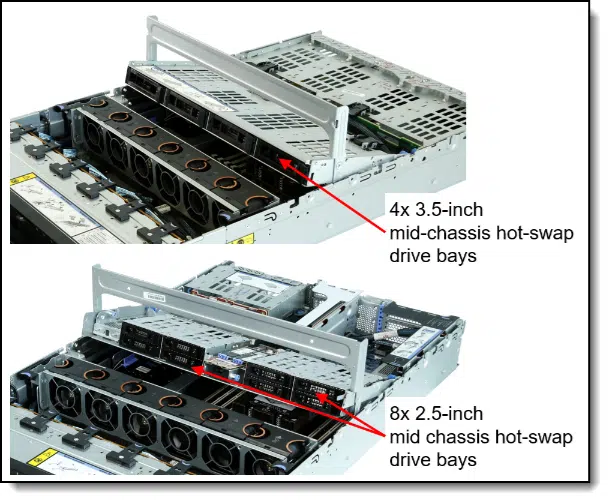

|Drive Bays||Up to 20x 3.5″or 32x 2.5″ drives; Maximum of 32x NVMe drives with 1:2 connection*|
|Expansion Slots||Up to 8x PCIe 4.0 slots, 1x OCP 3.0 adapter slot|
|GPU||Up to 8x single-width GPUs or 3x double-width GPUs*|
|Network Interface||OCP 3.0 mezz adapter, PCIe adapters|
|Power||Dual redundant PSUs (up to 1100W Platinum)|
|Ports||Front: 1x USB 3.0, 1x USB 2.0, 1x VGA (optional)
Rear: 3x USB 3.1, 1x Serial port (optional), 1x RJ-45 (management)
|Systems Management||ASPEED AST2500 embedded management processor, XClarity Provisioning Manager Lite (LXPM Lite) for system setup and firmware upgrades. XClarity Administrator centralized infrastructure management, and XClarity Energy Manager centralized server power management. Light path diagnostics for local failure detection and reporting.|
|OS Support||Microsoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware ESXi*|
|Limited Warranty||1- and 3-year customer replaceable unit and onsite services, next business day 9×5, optional service upgrades|
Lenovo ThinkSystem SR665 – 2U dual socket version
