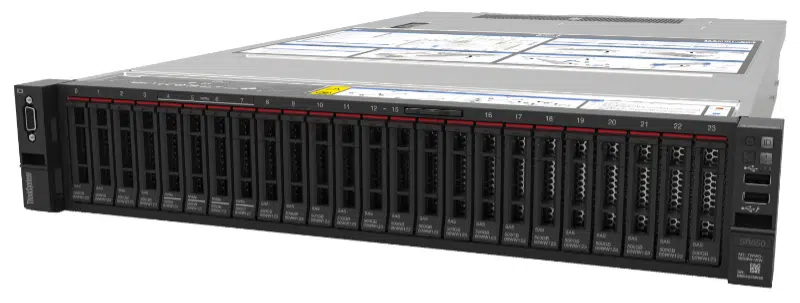

The Lenovo ThinkSystem SR650 is a dual-socket 2U rackmount server that supports the Intel® Xeon® family of processors. Designed to tackle big data center workloads such as databases, big data and analytics virtualization, VDI, HCI, HPC and AI solutions.
The Lenovo ThinkSystem SR650 up to 2 second-generation Intel® Xeon® Platinum processors, and a TDP ratings up to 205W. With support for the new Intel® Optane™ DC Persistent Memory.
With a wide choice of storage storage configurations the Lenovo ThinkSystem SR650 servers provides support for high capacity HDDs to lightning-quick NVMe drives to maximize both data capacity and throughput performance.
The Lenovo ThinkSystem SR650 provides the expandability, networking scalability, and speed necessary to ensure that I/O intensive workloads such as software defined networking, and grid computing do not encounter bottlenecks that reduce full enterprise efficiency.

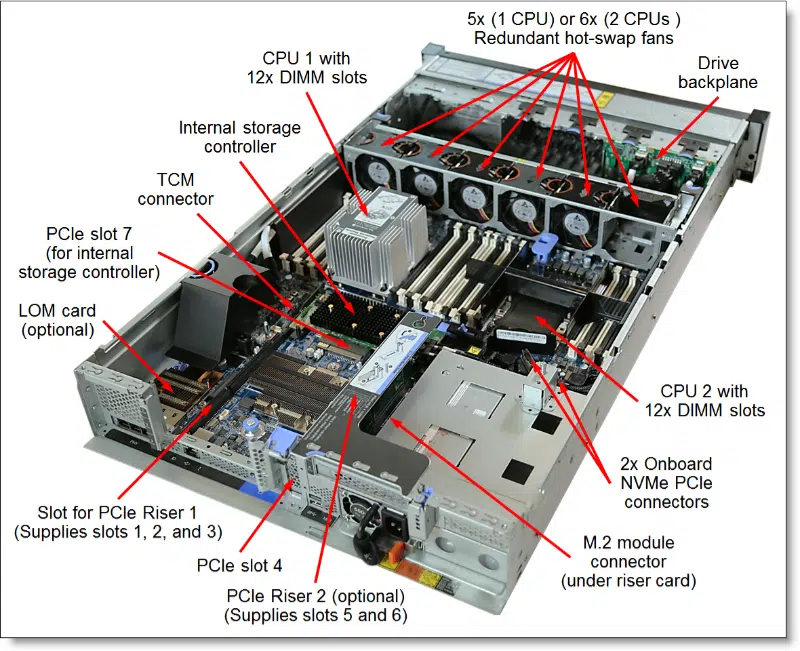

The Lenovo ThinkSystem SR650 incorporates up to two powerful Intel® Xeon® processor Scalable family CPUs, with 27 percent more cores and twice the memory capacity of the previous generation server*. It supports two 300W high-performance GPUs and ML2 NIC adapters with shared management. Unique Lenovo AnyBay technology provides the flexibility to mix-and-match SAS/SATA HDDs/SSDs and NVMe SSDs in the same drive bays. Four direct-connect NVMe ports on the motherboard provide ultra-fast read/writes with NVMe drives and reduce costs by eliminating PCIe switch adapters. Plus, storage can be tiered for greater application performance, to provide the most cost-effective solution. Optional mirrored M.2 drives ensure reliability and quick OS initialization. SR650 also features 80 PLUS Platinum and Titanium PSUs, as well as continuous operation at 45°C, to reduce energy costs.
The ThinkSystem SR650 features Lenovo’s lauded XClarity system management suite. The XClarity management controller supports an easy-to-use application with industry standard Redfish-compliant REST APIs that provide streamlined hardware provisioning and maintenance, enabling a data-driven, centralized view of data centre operations.
Trust Lenovo ThinkShield to protect and defend your data centre infrastructure from attacks, with a comprehensive end to-end approach to security that begins with development and continues through supply chain and the full life cycle of the device.
Lenovo is the leading provider of x86 systems for the data center. The portfolio includes rack, tower, blade, dense and converged systems, and supports enterprise class performance, reliability and security.
|Form Factor||2U rack server|
|Processors||Up to 2 second-generation Intel® Xeon® Platinum processors, up to 205W|
|Memory||Up to 7.5 TB in 24x DIMM slots using 128GB DIMMs and Intel® Optane™ DC Persistent Memory; 2666MHz / 2933MHz TruDDR4|
|Drive Bays||Up to 14x 3.5” or up to 24. 2.5” hot-swap bays (up to 12 AnyBay bays or up to 24 NVMe bays); up to 2x M.2 boot drives (RAID 1)|
|Expansion Slots||Up to 7x PCIe 3.0 via multiple riser options including 1x dedicated PCIe slot for RAID adapter|
|HBA/RAID Support||HW RAID (up to 24 ports) with flash cache; up to 16-port HBAs|
|Network Interface||2/4-port 1GbE LOM; 2/4-port 10GbE LOM (Base-T or SFP+); 1x dedicated 1GbE management port|
|Security and Availability Features||TPM 1.2/2.0; PFA; hot-swap/redundant drives, fans, and PSUs; 45°C continuous operation; light path diagnostic LEDs; front-access diagnostics via dedicated USB port|
|Power (Energy Star 2.0 compliant)||2x hot swap/redundant: 550W/750W/1100W/1600W 80 PLUS Platinum; or 750W 80 PLUS Titanium; or -48V DC 80 PLUS Platinum|
|Ports||Front: 1x USB 3.0, 1x USB 2.0, 1x VGA (optional)
Rear: 3x USB 3.1, 1x Serial port (optional), 1x RJ-45 (management)
|Systems Management||XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management|
|OS Support||Microsoft, Red Hat, SUSE, VMware. Visit lenovopress.com/osig for details.|
|Limited Warranty||1- and 3-year customer replaceable unit and onsite services, next business day 9×5, optional service upgrades|
As certified and approved suppliers we can help provide evaluation systems, quotations and full technical support and services to ensure you’re pleased with your purchase and would recommend them again.
To start your Lenovo journey call us on 01256 331614 or email us firstname.lastname@example.org
