Withdrawn product. Lenovo withdrew the ThinkSystem DG5000 on 5 March 2026. Its suggested replacement is the ThinkSystem DG5200. This page is a reference for existing users.

What is the Lenovo ThinkSystem DG5000?

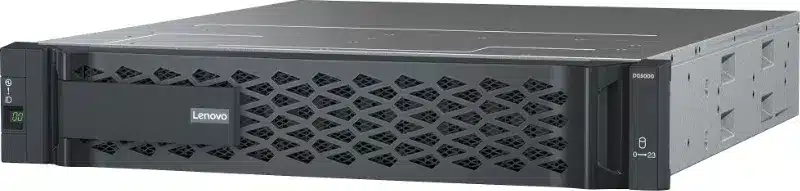

The DG5000 is a 2U all-flash storage array with two active-active controllers. It uses QLC NVMe SSDs, which store more data per drive, and runs ONTAP, so one system can serve file shares (NFS and SMB) and block storage (iSCSI, Fibre Channel, NVMe/FC and NVMe/TCP).

The controller enclosure holds 24 drives. One DG240N expansion enclosure adds another 24, for 48 drives per HA pair.

DG5000 specifications

SpecificationDG5000
Form factor2U, 24 drive bays
ControllersTwo, active-active
Memory per HA pair128GB, plus 16GB battery-backed NVRAM
Maximum drives48 per HA pair (with one DG240N expansion enclosure)
Drives2.5-inch NVMe QLC SSDs, including 15.36TB and 30.72TB
Raw capacity737TB with 48 × 15.36TB drives
Cluster sizeUp to 12 HA pairs for NAS, 6 for SAN
Host ports (per controller)2 × 10GBase-T onboard, plus two 4-port cards: 10/25GbE or 8/16/32Gb Fibre Channel
ProtocolsNFS, SMB, iSCSI, Fibre Channel, NVMe/FC, NVMe/TCP
PerformanceUp to 440,000 random read IOPS (8KB, Lenovo estimate)

Running a DG5000? We can help with drives, expansion and support.

Talk to a storage specialist →

Software bundles

The DG5000 runs ONTAP and came with one of two software bundles:

  • Unified Essential: SAN and NAS, data reduction (thin provisioning, compression, compaction and deduplication), snapshots, SnapRestore, FlexClone and ONTAP S3.
  • Unified Complete: everything in Essential, plus SnapMirror replication, SnapVault, SnapCenter, SnapLock and Autonomous Ransomware Protection.

Already own a DG5000?

A withdrawn product can still have years of useful life. We can help you:

  • Add drives or an expansion enclosure
  • Arrange support for your existing system
  • Plan a move to the DG5200 when the time is right

Buying new? Look at the DG5200

Lenovo names the DG5200 as the DG5000’s replacement. It takes up to 72 NVMe QLC SSDs per HA pair, compared with 48 on the DG5000. The DG7200 goes further, with up to 120 drives per HA pair.

Compare the DG5200 and DG7200 →

DG5000 FAQs

Is the Lenovo DG5000 still available?

No. Lenovo withdrew the DG5000 on 5 March 2026. We can still help existing users.

What replaced the DG5000?

The ThinkSystem DG5200, according to Lenovo.

How many drives does the DG5000 support?

Up to 48 NVMe QLC SSDs per HA pair: 24 in the controller enclosure and 24 in one DG240N expansion enclosure.

Which protocols does it support?

NFS and SMB for file, and iSCSI, Fibre Channel, NVMe/FC and NVMe/TCP for block.

Does the DG5000 include ransomware protection?

Autonomous Ransomware Protection is part of the Unified Complete software bundle, not Unified Essential.

Can you still supply parts and support?

We can help with drives, expansion and support for existing systems. Call 01256 331614 or send us a message with your setup.

Source: specifications, performance and withdrawal date from the Lenovo Press DG5000 product guide (LP1754). Performance figures are Lenovo estimates. Download the DG5000 datasheet (PDF).
